Diazomethane and the Arndt-Eistert Homologation

For the past year we have been starting peptidomimetic chemistry up as a new research area in our group. Many chemists believe that peptide chemistry is easy and that peptide chemists aren't "real chemists". However, let me tell you from personal experience that there is absolutely nothing trivial about peptide chemistry. Even short sequences with normal alpha amino acids can be a nightmare to make, troubleshooting is complicated, purification can be a major pain and yields that a small molecule chemist would consider a total fail is generally acceptable in this area of research. Some years ago I was working with a Post Doc that came from Dieter Seebach's lab at ETH. He introduced me to beta amino acids and ever since I have been fascinated by the use of these building blocks in peptidomimetic research. Inspired by the work of Samuel Gellman we are focusing on the use of beta-3 amino acids in combination with alpha amino acids. Consequently, we synthesise beta-3 amino acids to incorporate these in our peptides.

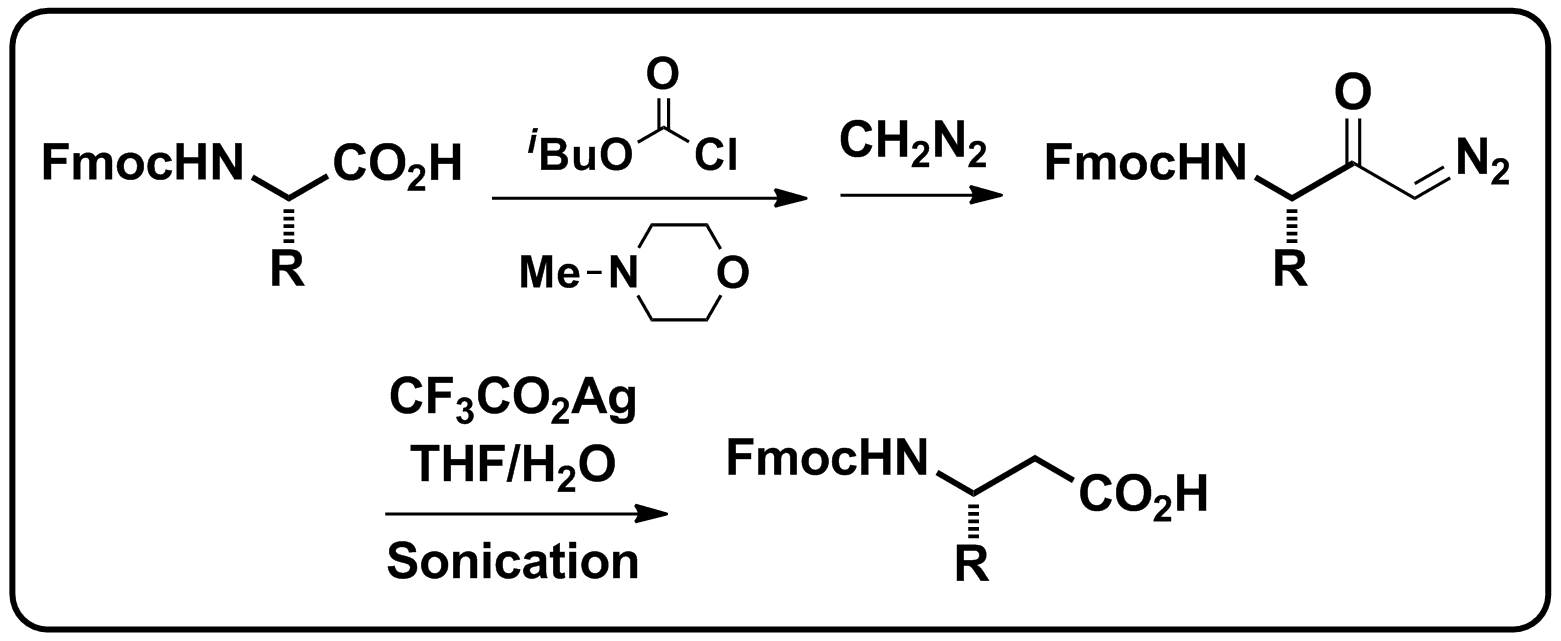

There is a number of ways to make beta-3 amino acids but from personal experience one method stands out as the best route to these molecules: the Arndt-Eistert homologation. In this classic approach an alpha amino acid is converted to a diazoketone followed by the Wolff rearrangement to provide beta-3 amino acids. The Arndt-Eistert homologation basically homologates a carboxylic acid with one methylene group as shown in the scheme below.
The last step, the Wolff rearrangement, is carried out by sonicating the diazoketone in the presence of a silver catalyst (in the dark). Because nitrogen is evolved during the course of the reaction we normally have an empty balloon fitted on the flask to avoid pressure build up. I rather like the feature that the balloon slowly gets inflated during the course of the reaction as shown in the picture below.
Silver catalysed Wolff rearragement in a sonicator. Left t = 0 hr; Right t = 2 hr.
However, as you may have noticed there is a down side to the Arndt-Eistert homologation: diazomethane! The reagent has a fearsome reputation and I have heard of a couple of guys who have managed to blow themselves up and gone deaf in the process. Allegedly, one chemist at our department even managed to set fire to himself! This was a long time a go when less attention was being paid to laboratory safety and the accidents were due to sloppiness and improper handling of diazomethane. If you are careful and use the correct glassware (with clear seal joints) there is (almost) nothing to worry about. We have purchased the setup shown on the picture below. This is a very nice diazomethane still consisting of only three pieces that will produce up to 40 mmol of diazomethane in approximately one hour. We only use hot water as the heating source and keep everything behind a blast shield just in case. Diazomethan is generated from Diazald  as shown in the scheme below and used immediately. The procedure it quite simple. In the separatory funnel you place a solution of Diazald in ether this is added dropwise to a heated mixture of aqueous potassium hydroxide, ether and a high boiling alcohol [commonly 2-(2-ethoxy-ethoxy)ethanol]. Diazald reacts with the base to produce diazomethane that is distilled with ether to the receiving flask.
Notice that diazomethane is always handled in solution. The neat stuff is known to explode unpredictably so don't even think about doing that. Because of the way that diazomethane is produced it is hard to add an exact number of equivalents to a reaction. For the synthesis of diazoketones we simply go for an excess of diazomethane (approximately 2-3 equivalents based on a 70% yield of diazomethane). We commonly distill the diazomethan directly into the reaction flask to minimise handling. For the synthesis of beta-3 amino acids the alpha amino acid is first transformed into a mixed anhydride which is exposed directly to an excess of diazomethane.
Diazoinsane clear seal distillation kit purchased from Sigma-Aldrich.
Unlike diazomethane, Diazald is reasonably stable and easy to handle yellow solid. Unfortunately, Diazald has obtained a rather bad reputation despite being relatively safe to deal with as long as you don't eat it, set fire to it, beat it with a hammer or something similarly stupid. Consequently, it can be rather hard to get hold of. When I worked in Australia it was particularly problematic as it can only be shipped by road and isn't produced in the country! Here in Denmark we get it from Germany but it does take a while because they don't send it with the regular shipments so you have to plan a bit ahead.
If you think that playing around with beta-3 amino acids could be fun I can recommend the company Anand Chem based in Slovakia. They produce almost all beta-3 amino acids with the proteinogenic side chains of excellent quality at a highly competitive price. Depending on what they have in stock you may have to wait a couple of weeks for the stuff but it is worth the wait considering the quality and the price. D!

Sunday, November 18, 2012

Diazotransfer - Synthesising Azides from Amines

In our group we work a lot with diazotransfer reagents and diazomethane so I thought it might be a good idea to share some of our knowledge. These reaction involve reagents that are very dangerous and azide products can also be explosive so you shouldn't do any of this chemistry without being 100% sure you know what you are doing. However, if experiments are performed thoughtfully and with care the chemistry is predictable and well behaved. We are doing diazotransfer all the time these days to convert amino acids into azide derivatives. There are many reagents available for the diazotransfer reaction with the most common depicted in the figure below.

We recently, published a review that gives a detailed description of the various diazotransfer reagents when used on amino acids but I believe it would be of interest to anyone attempting the conversion of an amine to an azide. Check it out here for the full story. The conclusion is that we favour reagents 4 that was developed by Goddard-Borger and Stick and first reported here. Later a safety update was published here followed by a comprehensive stability study that was published here. The problem is that the HCl salt of 4 is hygroscopic and when it becomes wet is starts to decompose forming hydrazoic acid (HN3) which is very nasty and totally unpredictable. Fortunately, it is easy to see when the decomposition has kicked in because the product turns into a black tar. The tetrafluoroborate and hydrogensulfate salts of 4 were found to be much better with respect to shelf life. In the future we will use the hydrogensulfate salt of 4, however, we have a big pile of the HCl salt we have to get through first. Fortunately, we discovered that rigorous drying of the HCl salt of 4 followed by storage at -20 oC makes it stable for >1 year. Anyway, if you are new to this stuff you should definitely go for the hydrogensulfate salt. Using the HCl salt of 4 we regularly synthesise amino acids with terminal azides in the side chain (see below).

This is easily achieved from the corresponding amine (in this example lysine). The pH of the reaction has to be adjusted to approx. 8 to get it going. We normally insert a pH meter to keep an eye on things and simply adjust pH by adding sat. aq. NaHCO3 when required. The fantastic thing about this reaction is that the crude product is of such high purity that we never perform any chromatography but simply dry it and use it as it is. The synthesis of this particular azide has been reported many times in the literature. For a recent detailed procedure check out our SYNLETT paper on the synthesis of Fmoc-L-Lys(N3)-OH and a number of other azide and alkyne derivatised amino acids.
Note that we are synthesising high molecular weight azides so these guys are not explosive. However, if you consider synthesising smaller azides please be aware that it isn't considered safe to handle azides with less than 6 heavy atoms per azido group (see our recent review for details).
Some of you are probably thinking what is the mechanism for this reaction? Well I'll leave that to someone else to have a go at. I don't think the actual mechanism has been conclusively established and the suggested arrow pushing is rather exotic. Suffice to say that it works and that nitrogen gets transferred from reagent to product without too much fuss. Have fun diazotransferring. D!
